Self-diagnosis function for faults in industrial control computers

Self-Diagnostic Capabilities in Industrial Control Computers

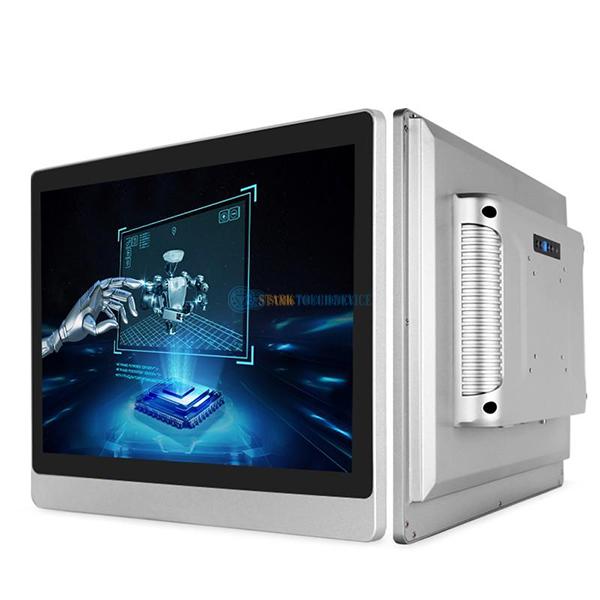

Industrial control computers (ICCs) must operate reliably in harsh environments where downtime can disrupt production lines, compromise safety, or lead to costly equipment damage. Self-diagnostic functions enable ICCs to detect hardware malfunctions, software errors, and environmental anomalies in real time, triggering alerts or automated recovery procedures to maintain system continuity. This guide explores the core components of self-diagnostic systems, their implementation methods, and their role in predictive maintenance strategies.

Hardware-Level Diagnostic Mechanisms

Voltage and Current Monitoring

ICCs continuously track power supply voltages across critical components like CPUs, memory modules, and peripheral interfaces. Deviations from specified ranges (e.g., undervoltage or overvoltage conditions) indicate potential failures in power regulators, connectors, or external power sources. Current sensors monitor draw on individual rails, flagging abnormal spikes that may signal short circuits or failing components.

For example, a sudden increase in current draw on a PCIe slot could suggest a malfunctioning expansion card, prompting the system to isolate the slot and reroute traffic through redundant paths. Voltage monitoring circuits with hysteresis thresholds prevent false alarms from minor fluctuations while ensuring rapid detection of critical failures.

Temperature Sensing and Thermal Management

Onboard temperature sensors placed near heat-generating components (CPUs, GPUs, power converters) provide real-time thermal data to the ICC’s diagnostic engine. Algorithms compare readings against predefined thresholds, triggering cooling fan speed adjustments or load redistribution to prevent overheating. If temperatures exceed safe limits despite corrective actions, the system may initiate a controlled shutdown to avoid permanent damage.

Thermal mapping across the ICC chassis helps identify localized hotspots caused by blocked airflow or degraded thermal paste. By correlating temperature trends with operational load patterns, diagnostics can distinguish between normal heating under peak usage and emerging cooling system failures.

Component Connectivity and Signal Integrity Checks

Self-diagnostic routines verify the physical integrity of internal connections by sending test patterns through buses like PCIe, USB, or Ethernet. Mismatched responses or excessive error rates indicate loose connectors, damaged traces, or failing transceivers. For example, a high bit-error rate on a Gigabit Ethernet link may prompt the ICC to reseat the RJ45 connector or switch to a backup network interface.

Memory diagnostic tools perform write-read cycles on RAM modules, identifying stuck bits or address line failures. These tests run during system boot and periodically during operation, ensuring memory reliability for time-critical control tasks.

Software-Based Fault Detection and Isolation

Watchdog Timers and Heartbeat Monitoring

Watchdog timers reset the ICC if software fails to update a counter within a specified interval, preventing hangs caused by infinite loops or deadlocked processes. Hardware-based watchdogs operate independently of the OS, ensuring recovery even during kernel panics or driver crashes. Software-based heartbeat mechanisms extend this concept to distributed systems, where nodes exchange periodic “alive” signals to detect disconnected or unresponsive peers.

For critical applications, dual watchdog timers (one hardware, one software) provide redundant protection. If either timer expires, the system transitions to a safe state, such as shutting down motors or activating emergency brakes.

Log Analysis and Anomaly Detection

ICCs generate detailed logs recording system events, error codes, and operational parameters. Diagnostic software parses these logs using pattern recognition algorithms to identify recurring issues or deviations from normal behavior. For example, frequent disk write errors may indicate a failing storage drive, while sporadic network timeouts could point to a congested switch.

Machine learning models trained on historical log data can predict failures before they occur by detecting subtle precursors, such as gradual increases in CPU temperature or memory usage. These predictive diagnostics enable proactive maintenance, reducing unplanned downtime.

Firmware and BIOS/UEFI Validation

Self-diagnostic routines verify the integrity of firmware images stored in non-volatile memory (e.g., SPI flash) using checksums or cryptographic hashes. Corrupted firmware may cause boot failures or unpredictable hardware behavior, so the ICC can automatically revert to a backup image if validation fails.

BIOS/UEFI-level diagnostics check system configuration settings (e.g., CPU frequency, memory timing) against hardware capabilities, alerting users to mismatches that could lead to instability. For example, overclocking settings applied to a stock CPU may trigger a warning during POST (Power-On Self-Test).

Communication and Network Diagnostic Tools

Link Layer Protocol Analysis

ICCs monitor communication protocols like Modbus, PROFINET, or EtherCAT for protocol violations, such as incorrect message lengths, invalid addresses, or missing acknowledgments. These errors often indicate misconfigured devices, cable faults, or incompatible firmware versions. Diagnostic tools capture and decode protocol frames, pinpointing the source of communication breakdowns in multi-node networks.

For example, if a slave device fails to respond to a master’s request, the ICC may isolate the faulty node by sending test messages through alternative paths or resetting the device remotely.

Network Topology Discovery and Latency Measurement

Self-diagnostic systems map network topologies by scanning for connected devices and identifying their roles (master, slave, gateway). This helps operators visualize the control architecture and detect unauthorized additions or removals. Latency measurements between nodes quantify communication delays, ensuring real-time systems meet timing requirements.

High latency on a critical control loop (e.g., robotic arm position feedback) may indicate network congestion or failing switches. The ICC can reroute traffic through less busy paths or prioritize time-sensitive packets using Quality of Service (QoS) settings.

Remote Diagnostics and Over-the-Air Updates

Modern ICCs support remote diagnostic access via secure channels like VPNs or dedicated management networks. Technicians can run tests, collect logs, or update firmware without physical access, reducing maintenance time and costs. Over-the-air (OTA) update mechanisms validate patch integrity before installation, preventing “bricked” devices due to corrupted firmware.

Remote diagnostics also enable centralized monitoring of distributed ICC fleets, allowing operators to identify regional trends (e.g., a batch of faulty power supplies affecting multiple sites) and coordinate repairs efficiently.

By integrating hardware sensors, software validation, and network analysis, industrial control computers can detect and resolve faults before they escalate into system failures. Continuous self-diagnosis ensures ICCs adapt to changing environmental conditions and component wear, maintaining reliability in mission-critical applications from manufacturing to energy infrastructure.
