Embedded Industrial Control Computer Device Integration and Debugging: A Practical Approach

Integrating and debugging embedded industrial control computers is a critical process that ensures seamless operation in automation and manufacturing environments. These systems combine hardware and software to manage complex processes, requiring precise calibration and troubleshooting to avoid downtime or performance issues. This guide explores the essential steps and techniques for achieving reliable integration and efficient debugging in industrial settings.

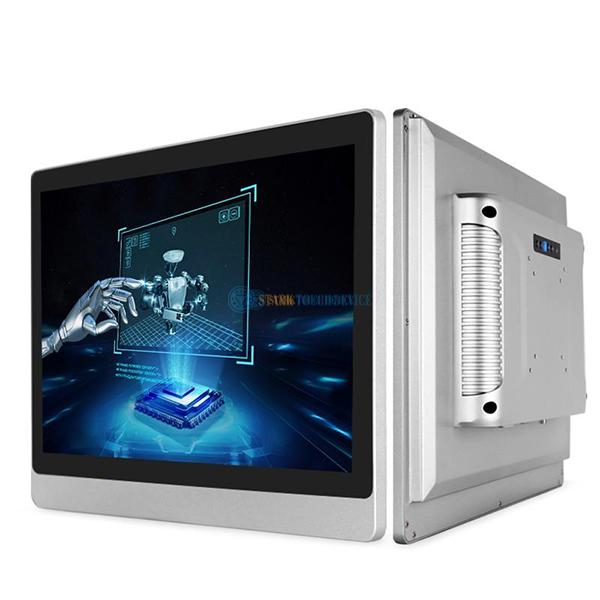

Industrial Computer

Understanding the Integration Challenges in Industrial Embedded Systems

Embedded industrial control computers face unique challenges during integration due to their role in mission-critical applications. Unlike standard computing devices, these systems must operate reliably in harsh environments with minimal human intervention. One common issue is hardware compatibility, where legacy peripherals or specialized sensors may not communicate effectively with modern embedded platforms.

Another challenge is real-time performance requirements. Industrial processes often depend on deterministic behavior, where tasks must complete within strict time constraints. A poorly integrated system might introduce latency, causing synchronization errors between connected devices. For example, a motor control application could experience instability if sensor data is not processed quickly enough.

Environmental factors also complicate integration. Industrial settings expose embedded systems to extreme temperatures, humidity, and electromagnetic interference, which can disrupt communication or damage components. Debugging in such conditions requires tools and methods capable of isolating hardware-related issues from software glitches.

Key Steps for Effective Device Integration

1. Hardware-Software Co-Design for Seamless Interaction

Successful integration begins with a co-design approach that aligns hardware capabilities with software requirements. Start by analyzing the industrial process to identify the precise needs of sensors, actuators, and communication interfaces. For instance, if the system requires high-speed data acquisition, select hardware components that support the necessary sampling rates and resolution.

  • Interface Standardization: Use industry-standard protocols like Modbus, CAN, or Ethernet/IP to ensure compatibility between devices. This reduces the risk of communication errors and simplifies future upgrades.

  • Power Management: Embedded industrial systems often operate on limited power budgets. Optimize hardware selection and software algorithms to minimize energy consumption without sacrificing performance.

  • Mechanical Integration: Ensure that the embedded computer fits physically within the industrial enclosure, considering factors like heat dissipation, vibration resistance, and accessibility for maintenance.

2. Firmware and Driver Development for Industrial Requirements

The firmware and drivers act as the bridge between hardware and software, making their development critical for reliable integration. Industrial applications demand firmware that is robust, secure, and capable of handling real-time tasks efficiently.

  • Real-Time Operating Systems (RTOS): Consider using an RTOS for tasks that require strict timing control. RTOSes provide features like task prioritization and interrupt handling, which are essential for industrial automation.

  • Driver Optimization: Write drivers that are optimized for the specific hardware peripherals used in the system. Avoid generic drivers that may introduce unnecessary overhead or compatibility issues.

  • Error Handling: Implement comprehensive error detection and recovery mechanisms in the firmware. For example, include watchdog timers to reset the system in case of a software crash or hardware malfunction.

Advanced Debugging Techniques for Industrial Embedded Systems

1. In-Circuit Debugging with Real-Time Monitoring

In-circuit debugging allows developers to observe and modify the behavior of an embedded system while it is running. This technique is invaluable for identifying issues that only occur during operation, such as race conditions or intermittent communication failures.

  • Logic Analyzers: Use logic analyzers to capture and analyze digital signals between the embedded computer and connected devices. This helps identify timing issues or protocol violations.

  • Oscilloscopes: For analog signals, oscilloscopes provide visual insights into voltage levels, waveforms, and noise. This is useful for debugging sensor interfaces or power supply issues.

  • JTAG/SWD Debugging: Leverage JTAG or Serial Wire Debug (SWD) interfaces to access the embedded processor’s internal state. This allows for step-by-step execution of code, memory inspection, and register manipulation.

2. Emulation and Simulation for Early Issue Detection
