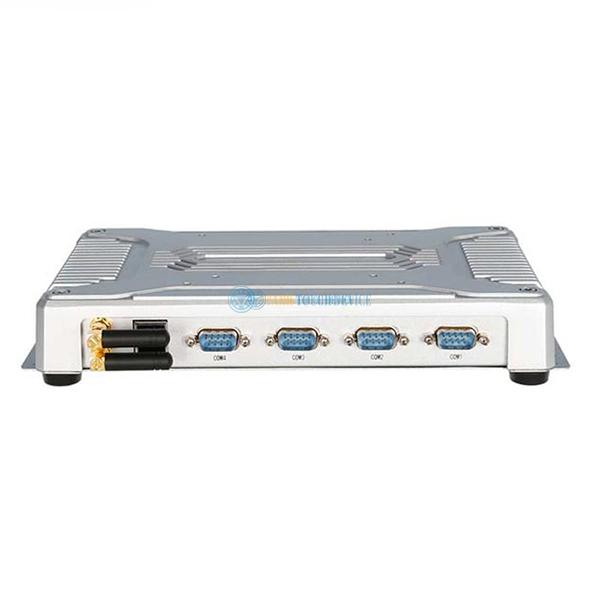

Implementing Camera-Based Image Acquisition for Industrial Control Computers: A Practical Guide

Industrial control computers (ICCs) play a pivotal role in automating processes, monitoring equipment, and ensuring quality control across manufacturing, logistics, and robotics. Integrating cameras for image acquisition expands these capabilities by enabling real-time visual inspection, object recognition, and motion tracking. However, deploying cameras in industrial environments requires addressing challenges like lighting variability, harsh conditions, and high-speed data processing. This guide provides actionable steps to achieve reliable image acquisition tailored to industrial workflows.

Choosing the Right Camera Technology for Industrial Needs

Selecting a camera involves evaluating resolution, frame rate, sensor type, and environmental resilience to match specific industrial applications.

Key factors to consider include:

• Resolution and Frame Rate: High-resolution cameras (e.g., 5MP or above) capture fine details for quality inspections, while high frame rates (60fps+) are essential for tracking fast-moving objects on conveyors. Balance these based on the task’s precision and speed requirements.

• Sensor Type: CMOS sensors offer faster readout speeds and lower power consumption, making them suitable for high-speed applications. CCD sensors, while more expensive, excel in low-light conditions and uniformity, which may benefit static inspections.

• Light Sensitivity: Industrial settings often have uneven lighting or glare from reflective surfaces. Opt for cameras with wide dynamic range (WDR) or low-light sensitivity to maintain image clarity in challenging conditions.

• Environmental Protection: Cameras exposed to dust, moisture, or extreme temperatures need IP-rated enclosures or ruggedized designs to prevent damage. For explosive environments, ensure compliance with safety standards like ATEX or IECEx.

Configuring Camera Settings for Optimal Industrial Performance

Proper setup ensures cameras deliver usable data while minimizing processing overhead on the ICC.

• Exposure and Gain Control: Adjust exposure time to avoid motion blur in fast-moving scenes. Use automatic gain control (AGC) cautiously, as it can introduce noise in low-light settings. Manual tuning or region-of-interest (ROI) exposure may yield better results.

• White Balance and Color Correction: Inconsistent lighting (e.g., mixed fluorescent and LED sources) can distort colors. Configure white balance settings or apply color calibration profiles to ensure accurate color representation for tasks like sorting or defect detection.

• Trigger Modes: Cameras can operate in free-run (continuous capture) or triggered modes. Triggered acquisition—via hardware signals (e.g., PLC outputs) or software commands—reduces data volume and aligns images with specific process stages, such as when a product reaches an inspection point.

• Compression and Data Formats: Raw image data consumes significant bandwidth. Use lossless compression (e.g., PNG) for critical inspections or lightweight formats (e.g., JPEG) for general monitoring. Ensure the ICC’s software supports the chosen format to avoid parsing errors.

Advanced cameras may support onboard processing (e.g., edge AI) to filter or pre-analyze images before sending data to the ICC, reducing latency and computational load.

Integrating Cameras with Industrial Control Computers

Seamless connectivity between cameras and ICCs is vital for real-time decision-making. The choice of interface and software integration method depends on the system’s architecture and performance needs.

• Interface Selection:

• GigE Vision: Popular for industrial cameras, GigE offers high bandwidth (up to 1Gbps) over long cable distances (up to 100m) using standard Ethernet. It supports Power over Ethernet (PoE), simplifying cabling in remote installations.

• USB 3.x: Provides plug-and-play convenience and sufficient bandwidth for most industrial applications. However, USB cables are limited to shorter distances (3–5m without extenders), making it better suited for stationary workstations.

• Camera Link: A high-speed interface for demanding applications like high-resolution microscopy or rapid inspection lines. It requires specialized cables and frame grabbers, increasing complexity but offering low latency.

• Software Integration:

• No previous
